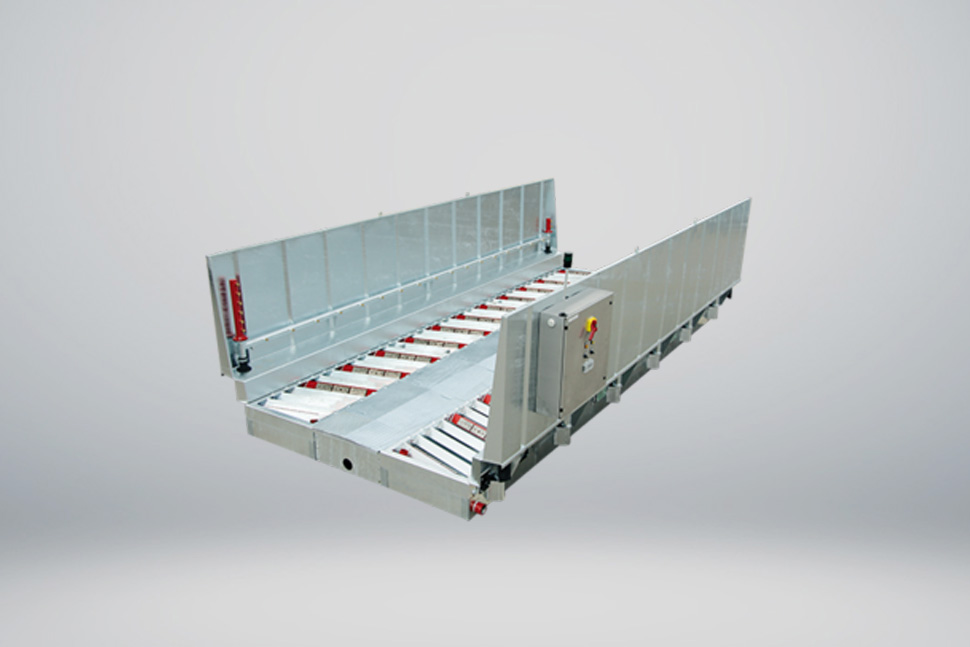

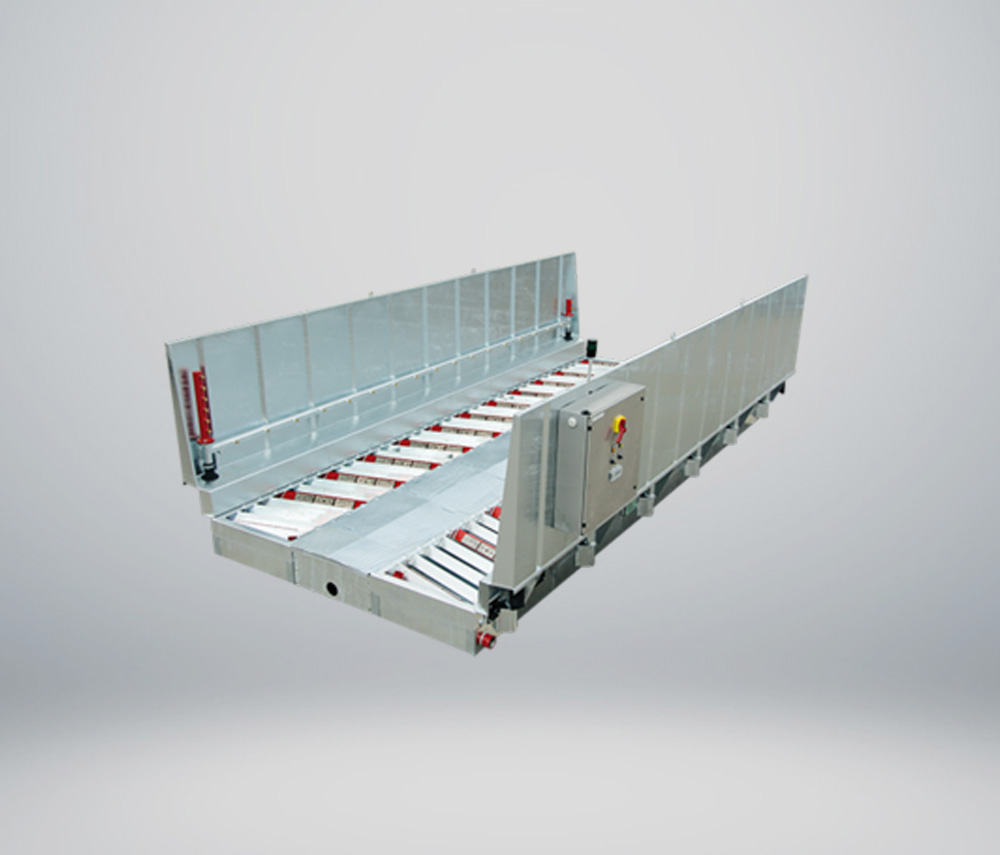

AUTOMATIC MINING TRUCK WASH
AUTOMATIC MINING TRUCK WASH

Our automatic mining truck wash equipments are quality line for effective wheel washing reliablity, durabiltiy and high customer satisfaction. Our Quick drive-through and roller models are custom engineered in a variety of wash platform lengths, widths, and axle loading capacities.

Our Wheel Washing Systems incorporate optional cleaning accessories and recycled water treatment technology to provide our customers with tailor made wheel wash track-out solutions.

Our Construction Line Wheel Washing Systems are our economic modular wheel wash systems for portable or permanent installations. Engineered for construction, rental, and industrial sites, the design of our machines is rugged, flexible, and easy to assemble.


Contact Us to know more about this product by submitting the form below

Specifications

Models 360 720 1000 1440 2000
Length of washing platform in cm 360 720 1000 1440 2000
Drive-through width of washing platform in cm 280 280 280 280 280
Height of splash side walls in cm 150 150 150 150 150
Supply line cross section in mm 125 125 125 125 125
Maximum permitted axle load in t 15 15 15 15 15 15 15
Fully galvanized ✓ ✓ ✓ ✓ ✓
Water-bearing construction ✓ ✓ ✓ ✓ ✓
Inclined track profiles ✓ ✓ ✓ ✓ ✓
Accessible with tracked vehicles✓✓✓✓✓
Modular Bottom Nozzle Concept-✓✓✓✓
Optional nozzle arrangement Light✓----
Optional nozzle arrangement Megawash-✓✓✓✓
Optional nozzle arrangement Powerflush-✓✓✓✓
Pump typeHWSHWSHWSHWSHWS
Maximum pump power in l/min3,60016,20023,40030,60045,000
Connected load per pump in kW/h5.55.55.55.55.5
Noise emission in dB*< 75< 75< 75< 75< 75
