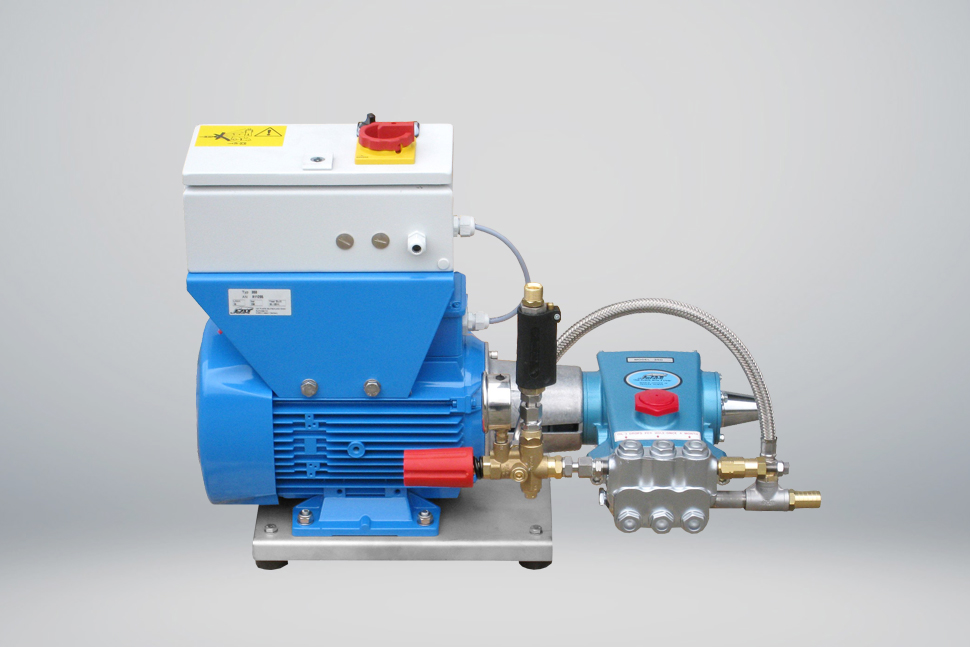

HIGH PRESSURE PUMPS

HONDA WASH SYSTEMS - HIGH PRESSURE PUMPS

HWS' high pressure pumps are self-contained high-pressure washer system that automatically reacts to the demand of a water.

Following are the features:
· With a decrease of pressure (i.e., trigger of gun/lance is pulled) the unit will switch on automatically and pump high-pressure water at the pre-configured flow and pressure to the lance or gun.
· If the gun is then shut off the pump unit will turn off within a time delay of 3-30 seconds (adjustable) and will be on standby.
· The unit restarts immediately after the gun is used again.
· Dry run protection prevents the unit from starting if the water supply is interrupted.

Contact Us to know more about this product by submitting the form below

Cat Pumps high-pressure plunger pumps

Regulating unloader valve

Pressure gauge

Flow switch

Motor protection switch

Operating hours counter

Base plate

3 m cable with 16 Ampere CEE norm connector

Compact design with control system mounted directly onto motor

Specifications
Flow Rate (l/min) 10
Operating Pressure Bar 150
RPM 1420
Max Water Temp (oc) 70
Motor Power (kW) 4
Weight (kg) 85
Length (mm) 850
Width (mm) 400
Height (mm) 550
