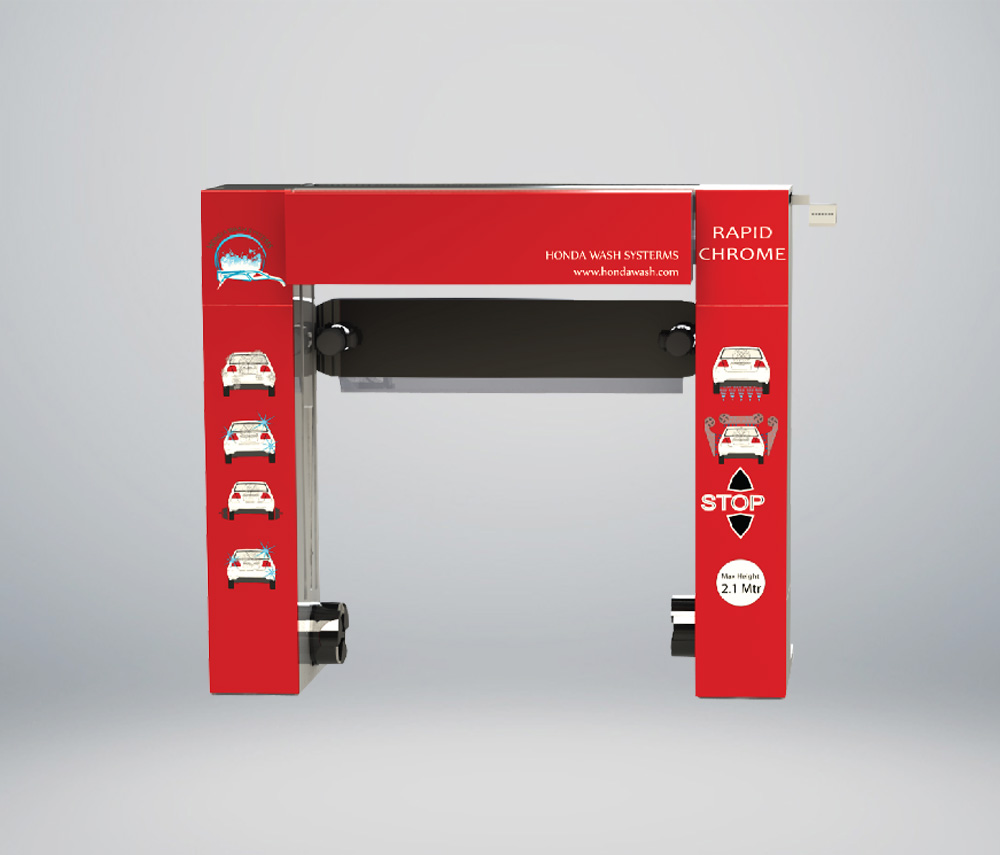

RAPID CHROME
HONDA WASH SYSTEMS - RAPID CHROME FOR CAR WASH

An attractive Car Wash machine complmented with high technology and topp features ensure a reliable operation.

Rapid Chrome offers a car wash experience that leaves no one different.

The flexible programming of RAPID CHROME facilitates adaptation to individual user needs. Different wash programs can be configured, speeds can be parametrised, chemical products can be dosed, light sign codes can be set, etc.


Contact Us to know more about this product by submitting the form below

High Pressures

A number of high pressure pre-wash options with a common goal: removing stubborn dirt from the vehicle body

Oscillation high pressure, 100L/min, 22-24 bar

The oscillating high pressure with zero-angle nozzles is located on the side at the top of the machine. It prevents dripping on the surface of the vehicle and speeds up the pre-wash

1 HP Water pump for shampoo foam & wax operation

With the on-board system, the RAPID CHROME is equipped with a 3L/min 4 bar pump built into the post.

Specifications
Machine Structure Hot Dip Galvanized 3 mm plates
Ultrasonic Length Sensing Yes
Vertical Touchless Arm 2 With Sliding System
Horizontal Arm 1 With Rope Wire Drive System
Wheel Brush 2 With Water Spray Nozzle
Foam Foam Cycle
Wax Wax Cycle
Dryer On-board Contour Following Blowers
Washable Dimensions
Height 2.3 m / 7.5 ft
Width 2 m / 6.5 ft
Length 5.2 m / 17 ft
Power
Electricity Supply 415 Voltage 50 Hz 3 Phase with Neutral
Max Power Required 20 HP / 15 KW
Connectivity
Control Programming PLC SIEMENS
Control System HMI Panel 7" Touch Screen Color with process graphic Display
Others
Wheel Guides Square Pipe Yellow 6mtr with LED
Trolley Rails Rectangular Bar Galvanized
Water Pump Details MONOBLOCK PUMP + HIGH PRESSURE PUMP
Pump Pressure 30 bar
Cable Carrier System Cable Track Chain
Machine Fascia FRP
Body Paint Auto Painted
