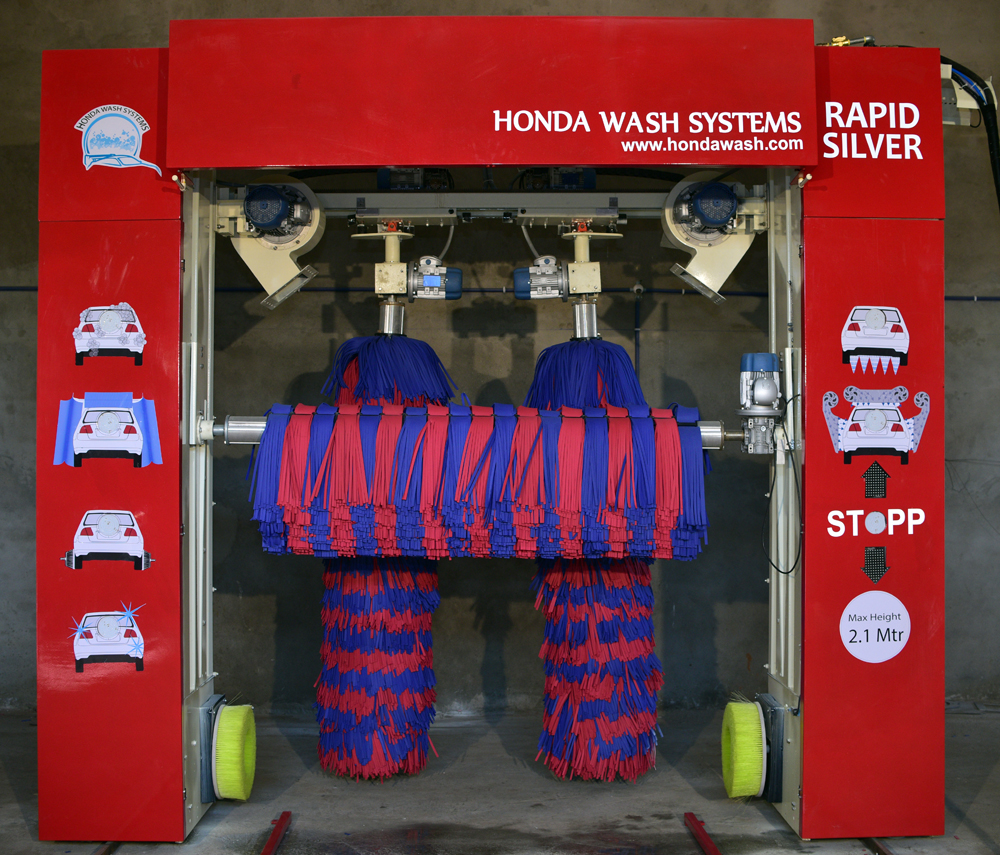

RAPID SILVER
HONDA WASH SYSTEMS - RAPID SILVER FOR CAR WASH

An attractive Car Wash machine complmented with high technology and topfeatures ensure a reliable operation.

Rapid Silver offers a car wash experience that leaves no one different.

The flexible programming of RAPID SILVER facilitates adaptation to individual user needs. Different wash programs can be configured, speeds can be parametrised, chemical products can be dosed, light sign codes can be set, etc.


Contact Us to know more about this product by submitting the form below

High Pressures

A number of high pressure pre-wash options with a common goal: removing stubborn dirt from the vehicle body

Oscillation high pressure, 100L/min, 22-24 bar

The oscillating high pressure with zero-angle nozzles is located on the side at the top of the machine. It prevents dripping on the surface of the vehicle and speeds up the pre-wash

1 HP Water pump for shampoo foam & wax operation

With the on-board system, the RAPID SILVER is equipped with a 3L/min 4 bar pump built into the post.

Specifications
Machine Structure Hot Dip Galvanized 3 mm plates
Brush Pressure Sensing Yes
Brushes Material Soft Foam EVA Brush
Vertical Brush 2 With Sliding System
Horizontal Brush 1 With Rope Wire Drive System
Wheel Brush Optional Add On
Shampoo Shampoo Cycle
Foam Optional Add On
Wax Optional Add On
Dryer Optional Add On
Washable Dimensions
Height 2.3 m / 7.5 ft
Width 2 m / 6.5 ft
Length 5.2 m / 17 ft
Electricity
Electricity Supply 415 Voltage 50 Hz 3 Phase with Neutral
Max Power Required 24 HP / 6.5 KW
Connectivity
Control Programming PLC SIEMENS
Control System HMI Panel 7" Touch Screen Color with process graphic Display
Remote Connectivity N.A
Others
Wheel Guides Square Pipe Yellow 6mtr
Trolley Rails Rectangular Bar Galvanized
Water Pump Details MONOBLOCK PUMP + PRESSUR PUMP
Min. Pressure 8 bar
Cable Carrier System Loop Carrier System
Machine Fascia ABS
Body Paint Auto Painted
